sluice gates

ductile Iron Sluice gates

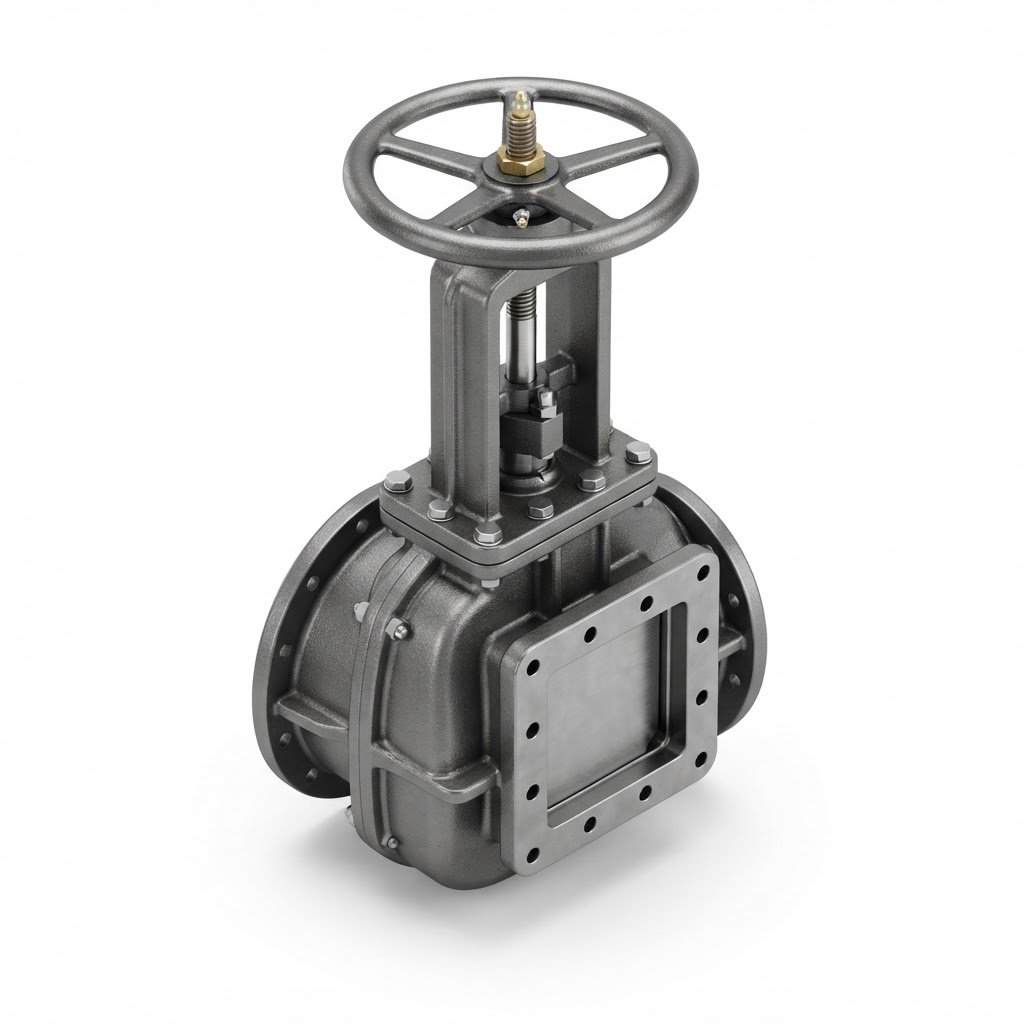

The Montagnoli Ductile Iron Sluice Gates have been designed to ensure reliability and operational performance in water and wastewater treatment applications. Their one-piece design of the frame and gate provides robustness and precision in operation and gate sealing. The Ductile Iron Sluice Gates feature a self-lubricating wedge system that ensures smooth operation and low coefficient of kinematic friction, requiring less force for actuation, thus extending the lifespan and performance of the gate while maintaining 100% sealing efficiency. The wedges also have an adjustable position system to compensate for natural wear throughout the gate’s lifespan. As standard, the Ductile Iron Sluice Gates adhere to the guidelines and requirements of the AWWA C501-92 standard.

comp-aco2

APPLICATIONS:

  • Water and Wastewater Treatment

CONSTRUCTION MATERIALS:

BODY:

The frame of the Ductile Iron Sluice Gates is typically made of Ductile Iron. However, different materials can be requested based on customer needs, such as SAE 1018, 1040, GGG40.

GATE:

In the Ductile Iron Sluice Gates, the gate is manufactured from the same material as the body, ensuring the rigidity of the assembly and maximizing product lifespan.

WEDGES:

By default, the wedges are made of Bronze SAE 660. Throughout the lifespan of the gate, the natural wear resulting from its operation leads to the wear of the wedges due to their lower Brinell Hardness (HB 45) compared to the material of the frame and gate.

ACTUATION:

The available actuation systems for Ductile Iron Sluice Gates can be developed with Rising Stem or Non-Rising Stem configurations. The following actuation options are already available:

  • Manual
  • Manual with Gearbox
  • Electric
  • Hydraulic
  • Engineered

ACCESSORIES:

  • Extension Rods in AISI 304 / 316
  • T-Head Actuator
  • Pedestal for Wheel Actuation
  • Limit Switches: Electromechanical with reversible contacts (15A/250V AC), Inductive (15-30V DC), Capacitive (10-30V DC)
  • Position Locks (Lock in Place)
  • Engineered

MAIN DIMENSIONS:
